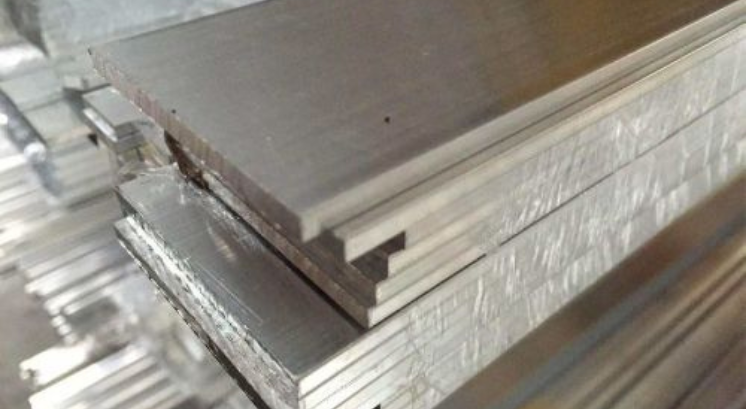

Aluminium 1060 Flat Bar

Aluminium 1060 Flat Bar is a high-purity aluminium alloy containing a minimum of 99.6% aluminium, known for its excellent corrosion resistance, high ductility, and outstanding formability. It is widely used in applications where superior electrical and thermal conductivity are required along with good workability. This alloy is especially suitable for electrical components, chemical equipment, architectural applications, and decorative purposes due to its smooth surface finish and resistance to oxidation. Aluminium 1060 Flat Bar is available in various sizes and thicknesses and can be supplied in custom lengths as per specific project requirements. It offers excellent weldability and can be easily bent, cut, and fabricated without cracking. Although it has relatively lower strength compared to heat-treatable aluminium alloys, it provides exceptional resistance to atmospheric and chemical corrosion. Lightweight, durable, and easy to fabricate, Aluminium 1060 Flat Bar is ideal for applications where conductivity, corrosion resistance, and formability are prioritized over high strength.

Aluminium 1060 Flat Bar Specifications

Standards : ASTM B221, ASTM B211, ASTM B565, ASTM B491, EN 573, EN 755
Temper :O, H12, H14, H16, H18, H24
Length : 100 mm to 3000 mm Long & Above, Random, Fixed & Cut Length or as per clients’ requirement
Size : 5 mm to 500 mm
Finish : Mill Finish, Bright, Polished, Anodized
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Flat Bar

KEY FEATURES

High purity 99.6%, corrosion resistant, excellent electrical conductivity, highly reflective, easy to form, food-safe, economical, anodizing-friendly

PRODUCT RANGE

1060 flat bar, hot rolled 1060 flat bar, cold rolled 1060 flat bar, anodized 1060 flat bar, mirror finish 1060 flat bar, polished 1060 flat bar, brushed 1060 flat bar, embossed 1060 flat bar, coated 1060 flat bar.

GLOBAL EQUIVALENTS

AA1060 (USA), ASTM B209 1060, ASME SB209 1060, UNS A91060, EN AW-1060, EN 573-3, EN 485-2/4 (Europe), ISO Al99.6 (International), DIN 3.0265, DIN Al99.6, Werkstoff 3.0265 (Germany), BS 1A (British Standard), AFNOR A6 (France), UNI 1060 (Italy), GOST 4784 A6 (Russia), GB/T 3190 1060, LF6, LD6 (China), JIS H4000 A1060, JIS A1060P (Japan), KS D4201 1060 (South Korea), TSE EN 1060 (Turkey), SANS EN 1060 (South Africa), Mexico follows AA/ASTM 1060, India uses AA/EN 1060, GCC (UAE, Saudi, Qatar, Oman, Kuwait, Bahrain) uses ASTM/EN 1060

TEMPERS

1060-O, 1060-H12, 1060-H14, 1060-H16, 1060-H18, 1060-H19, 1060-H22, 1060-H24, 1060-H26, 1060-H28, 1060-H32, 1060-H34, 1060-H36, 1060-H38.

INDUSTRY APPLICATIONS

Electrical conductors, transformer windings, busbars, chemical storage tanks, food processing equipment, reflective panels, HVAC insulation, signage, heat exchangers, industrial fabrication.

ALLOY KEYWORDS

aluminium alloy 1060 flat bar, 1060 aluminium flat bar, 1060 alloy flat bar, Al99.6 flat bar, pure aluminium 1060 flat bar, 1060 flat bar supplier, 1060 flat bar Stockist and Supplier, 1060 flat bar stockist

BUYER KEYWORDS

1060 flat bar supplier, 1060 flat bar exporter, 1060 flat bar dealer, 1060 flat bar distributor, buy 1060 flat bar, 1060 flat bar price per kg

LOCATION KEYWORDS

1060 flat bar Mumbai, 1060 flat bar Pune, 1060 flat bar Delhi, 1060 flat bar Chennai, 1060 flat bar Bengaluru, 1060 flat bar Hyderabad, 1060 flat bar Ahmedabad, 1060 flat bar Kolkata, 1060 flat bar Dubai, 1060 flat bar Abu Dhabi, 1060 flat bar Sharjah, 1060 flat bar Doha, 1060 flat bar Muscat, 1060 flat bar Riyadh, 1060 flat bar Jeddah, 1060 flat bar Kuwait City, 1060 flat bar New York, 1060 flat bar Los Angeles, 1060 flat bar Houston.

Aluminium 1060 Flat Bars Equivalent Grades

European Standard	BS	USA (AA)	GERMANY (DIN)	Canada	ISO
EN AW-1060	1060	1060	Al99.6	1060	Al99.6

Aluminium 1060 Flat Bars Chemical Composition

Alloy	Al	Si	Fe	Cu	Mn	Cr	Mg	Zn	Ti	Other Each	Others Total
1060	99.60 min	0.25 max	0.35 max	0.05 max	0.03 max	0.03 max	0.03 max	0.05 max	0.03 max	0.03 max	0.15 max

Aluminium 1060 Flat Bars Mechanical Properties

Material	Thickness (mm)	Tensile Strength (N/mm²)	Yield Strength (N/mm²)	Elongation % (min)
Aluminium 1060	< 20	70 – 110	25 min	35
	20 – 100	70 – 110	25 min	32
	100 – 200	65 – 100	22 min	30

OUR SPECIAL GRADES

2014	2017	2024	5083	6061
6063	6082	7075
